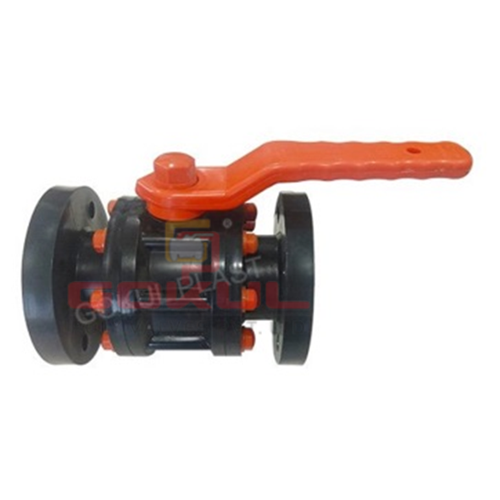

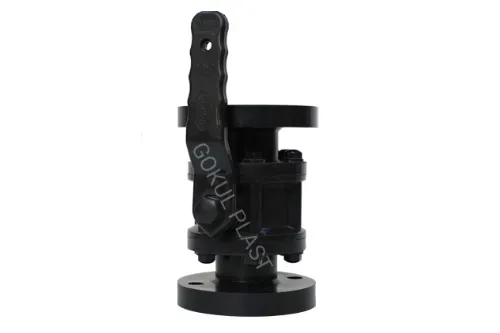

Premium PP Three Piece Ball Valve Flange End Manufacturer
We are a reputable PP Three Piece Ball Valve Flange End Manufacturer, with high-strength and corrosion-resistant valves to be used in industrial applications with high requirements. Our three-piece ball valves are made of high quality polypropylene (PP), thus guaranteeing high chemical resistance, long life and leak-free performance.
These valves have an easy body flanged design that allows easy installation and rigid connection to the pipeline, thus being suitable in chemical processing units, water treatment, pharma industries, agriculture system and the general industrial fluid handling.
The three parts construction ensures fast maintenance and quick replacement of internal components without the need to remove the valve from the pipeline. Our PP Three Piece Ball Valves have a smooth running ball mechanism and a high sealing ability to provide reliable operation even in harsh conditions. Select our technically designed PP Flange End Valves as reliable controls of fluids and economical operation in the lo.
TECHNICAL SPECIFICATION FOR PP THREE PIECE FLAGE END BALL VALVE | |
| Material Of Construction | PP (Polypropylene) / HDPE(High density polyethylene)/ PVDF(Polyvinylidene fluoride) |
| Design | 3 Piece Design |
| Maximum working temp | 80 c (consistently) |
| Connection End | Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. |
| Construction | 3-piece design, 1-piece stem (spindle), full bore, Teflon seated |
| Hydraulic Test Pressure | Body-150 PSI & SEAT-100PSI |
| Size Range | ½” 15MM TO 12’’-315MM |
| Standard | As per the manufacturer’s |
| MATERIAL SPECIFICATION | |||
| No. | DESCRIPTION | QTY. | MATERIAL |
| 1) | Side Piece /Flanged end | 2 | PP / HDPE & PVDF |
| 2) | Body | 1 | PP / HDPE & PVDF |
| 3) | Ball | 1 | PP & PVDF |
| 4) | Stem/Spindal | 1 | PP With M.S. /S.S |
| 5) | Seat Ring | 2 | PTFE (TEFLON) |
| 6) | Body”O”Ring | 2 | Noeprene |
| 7) | Stem Seal Ring | 1 | PTFE (TEFLON) |
| 8) | Stem “O” Ring | 1 | Neoprene |
| 9) | Stud, Nut & Washer | REQ | M.S. Zinc Plated/S.S |
| 10) | Nut Cap | REQ | Polypropylene. |
| 11) | Handle | 1 | M.S. PP Coated. |
| 12) | Handle Hex. Pin | 1 | M.S./ S.S. |
| 13) | Handle Cap | 1 | Polypropylene. |

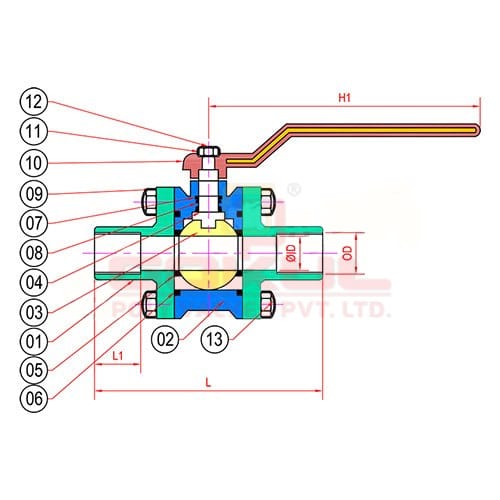

| SIZE SPECIFICATION | ALL DIMENSIONS ARE IN ± 2 MM | ||||||
| Size | L | T | OD | ID | H1 | H | |
| In. | mm | ||||||
| 1/2″ | 15 mm | 140 | 12.5 | 100 | 13.5 | 130 | 69 |
| 3/4″ | 20 mm | 142 | 14 | 101 | 19 | 131 | 75 |
| 1″ | 25 mm | 160 | 20 | 123 | 24 | 165 | 89 |
| 1 1/2″ | 40 mm | 182 | 20 | 140 | 38 | 197 | 109 |
| 2″ | 50 mm | 208 | 22 | 165 | 50 | 200 | 121 |
| 2 1/2″ | 65 mm | 227 | 25 | 185 | 63 | 255 | 144 |
| 3″ | 80 mm | 248 | 25 | 201 | 75 | 255 | 150 |
| 4″ | 100 mm | 302 | 28 | 228 | 100 | 350 | 182 |
| 6″ | 150 mm | 428 | 30 | 300 | 150 | – | 236 |
| 8″ | 200 mm | 505 | 32 | 360 | 201 | – | 325 |
| 10″ | 250 mm | 570 | 34 | 425 | 242 | – | 310 |
| 12″ | 315 mm | 590 | 35 | 487 | 300 | – | 309 |
